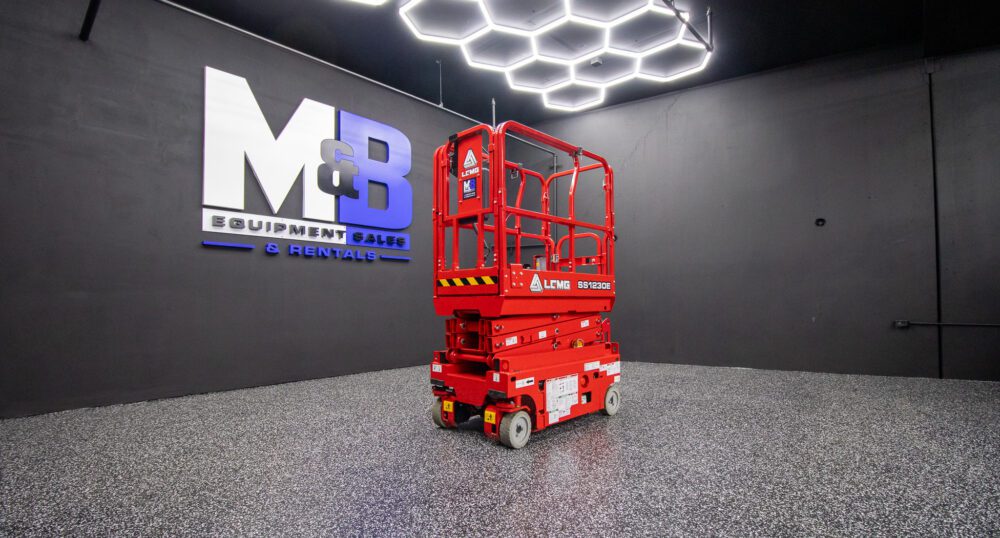

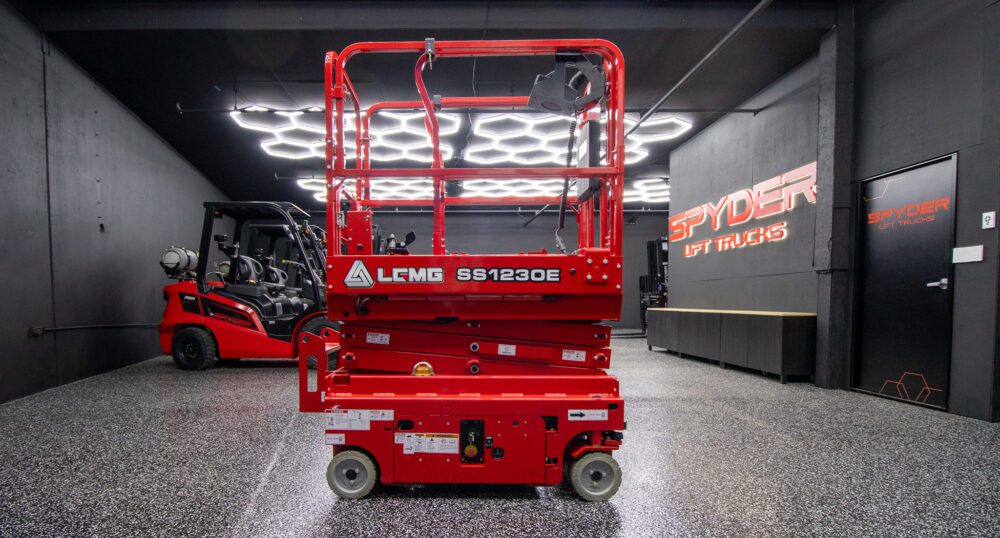

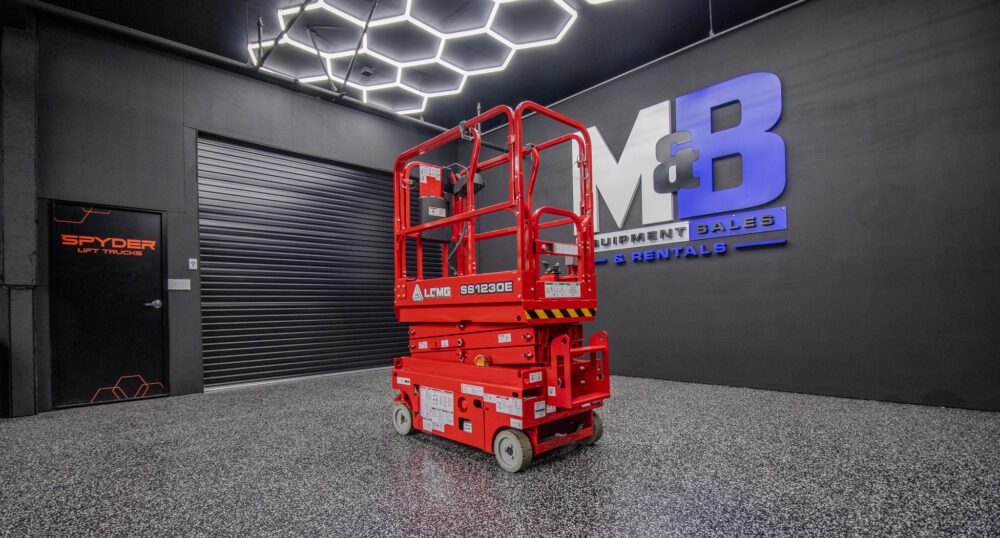

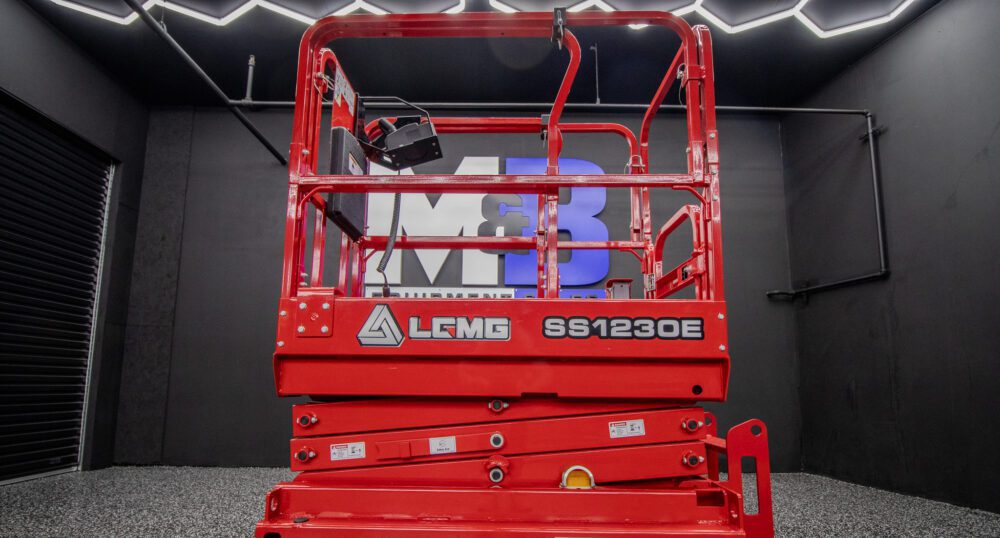

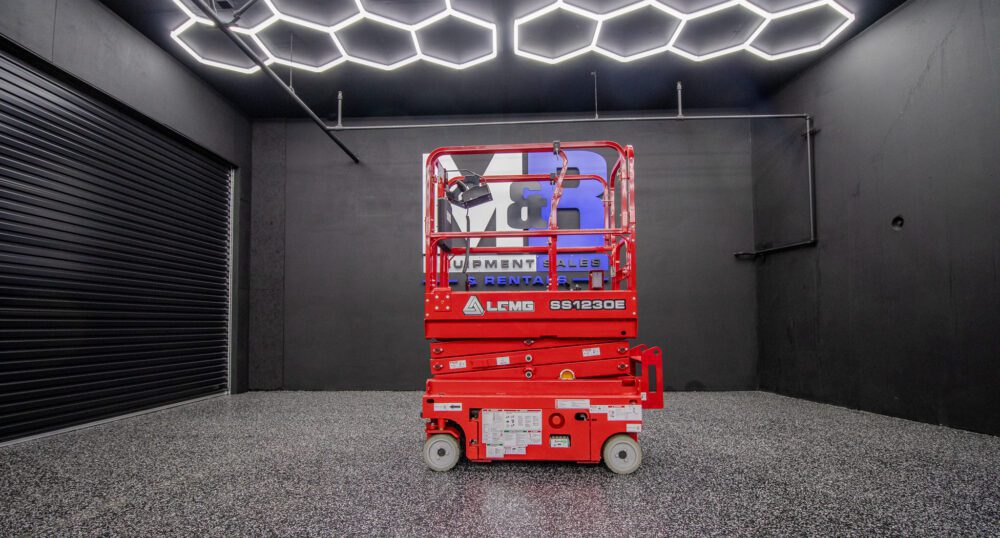

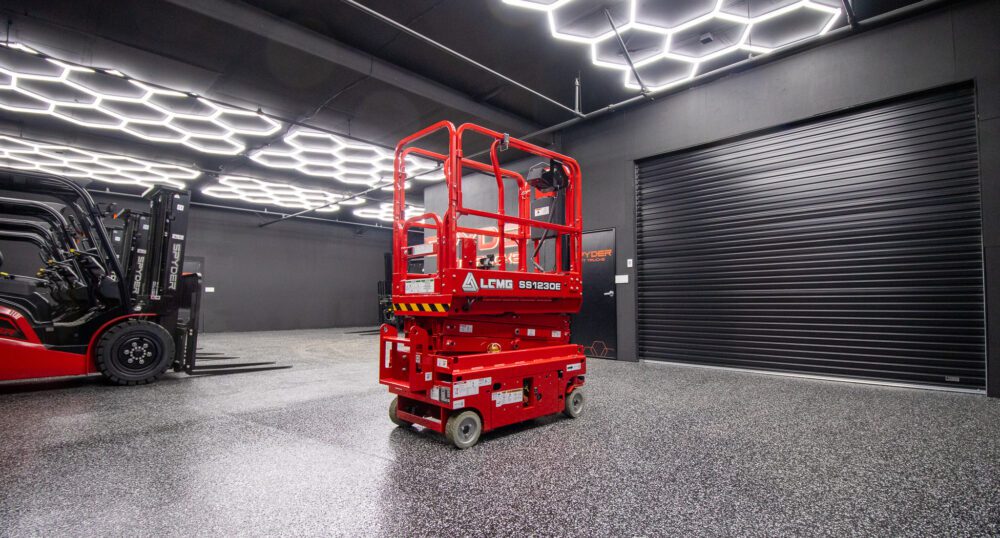

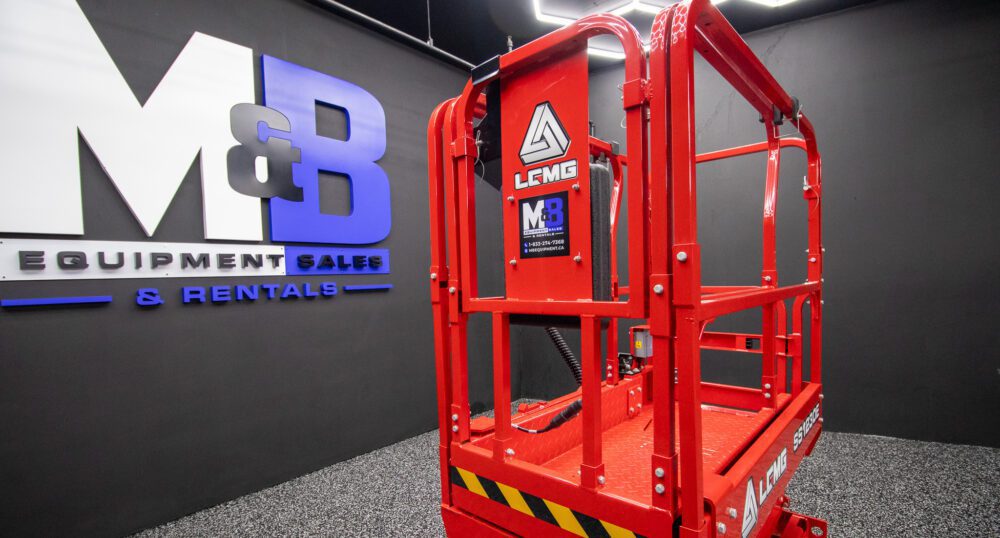

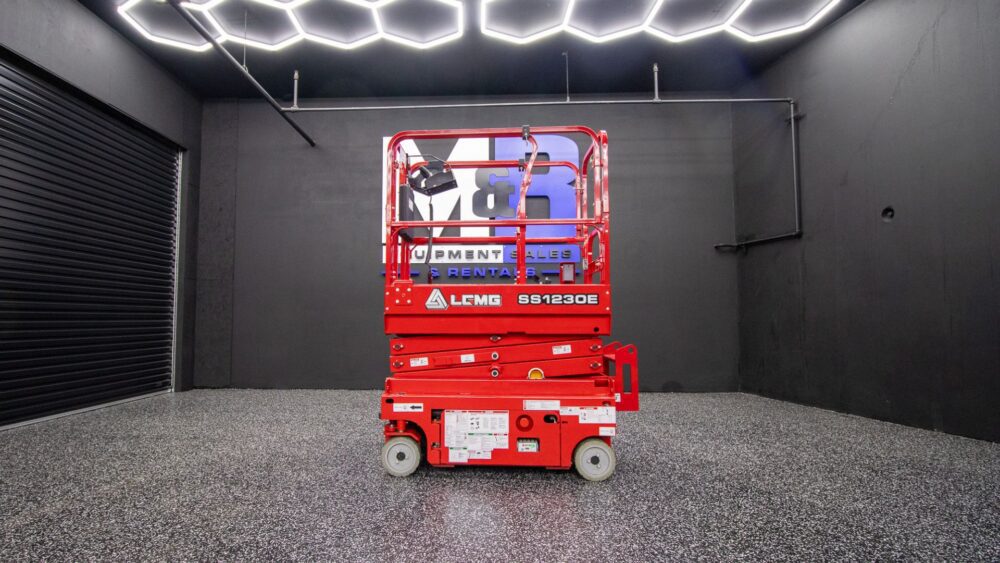

12’ Compact LGMG Scissor Lift
Purchase Price:
$13,800.00 +taxes & delivery
From $230 / Month (OAC)
Free Pickup in Delta, B.C. or Edmonton, AB

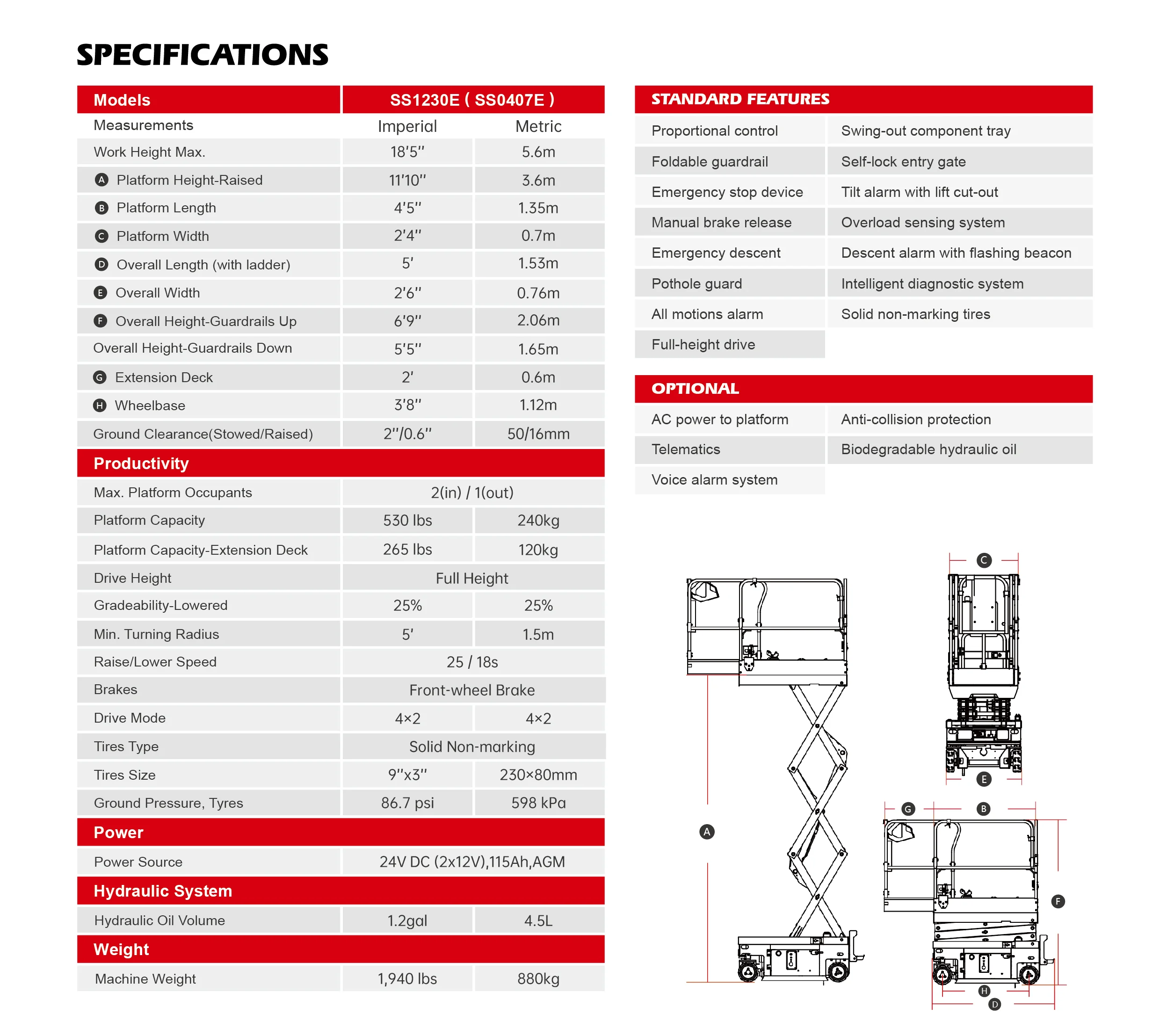

| Model |
SS1230E |
| Measurements |
Imperial |
| Platform Height-Raised |
11'10" |
| Platform Length |
4'5" |
| Platform Width |
2'4" |
| Overall Length (width ladder) |
5' |
| Overall Width |
2'6" |
| Overall Height-Guardrails Up |
6'9" |
| Overall Height-Guardrails Down |
5'5" |
| Extension Deck |
2' |
| Wheelbase |
3'8" |
| Ground Clearance(Stowed/Raised) |
2"/0.6" |
| Productivity |
|
| Max. Platform Occupants |
2(in) / 1 (out) |
| Platform Capacity |
530lbs |
| Platform Capacity-Extension Deck |
265lbs |
| Drive Height |
Full Height |
| Gradeability-Lowered |
25% |
| Min. Turning Radius |
5' |
| Raise/Lower Speed |
25/18s |
| Brakes |
Front-wheel Brake |
| Drive Mode |
4x2 |
| Tires Type |
Solid Non-marking |
| Tires Size |
9"x3" |
| Ground Pressure, Tyres |
86.7 psi |
| Power |
|
| Power Source |
25V DC (2x12V),115Ah, AGM |
| Hydraulic System |
|
| Hydraulic Oil Volume |
1.2gal |
| Weight |
|
| Machine Weight |
1,940lb |
| Standard Features |
|
| Proportional control |
Swing-out component tray |
| Foldable guardrail |
Self-lock entry gate |
| Emergency stop device |
Tilt alarm with lift cut-out |
| Manual brake release |
Overload sensing system |
| Emergency descent |
Descent alarm with flashing beacon |
| Pothole guard |
Intelligent diagnostic system |
| All motions alarm |
Solid non-marking tires |
| Full-height drive |
|
| Optional |
|
| AC power to platform |
Anti-collision protection |
| Telematics |
Biodegradable hydraulic oil |
| Voice alarm system |
|
