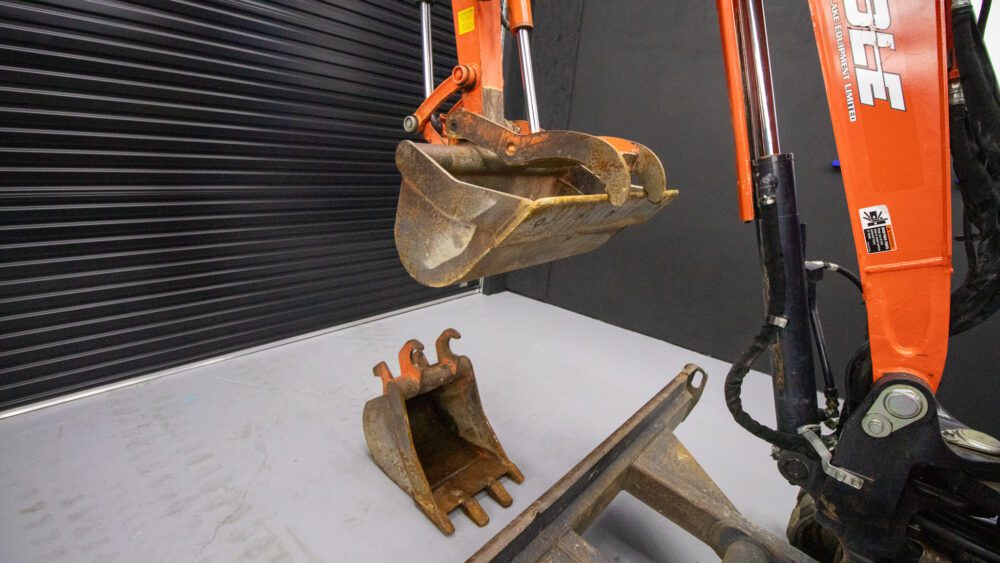

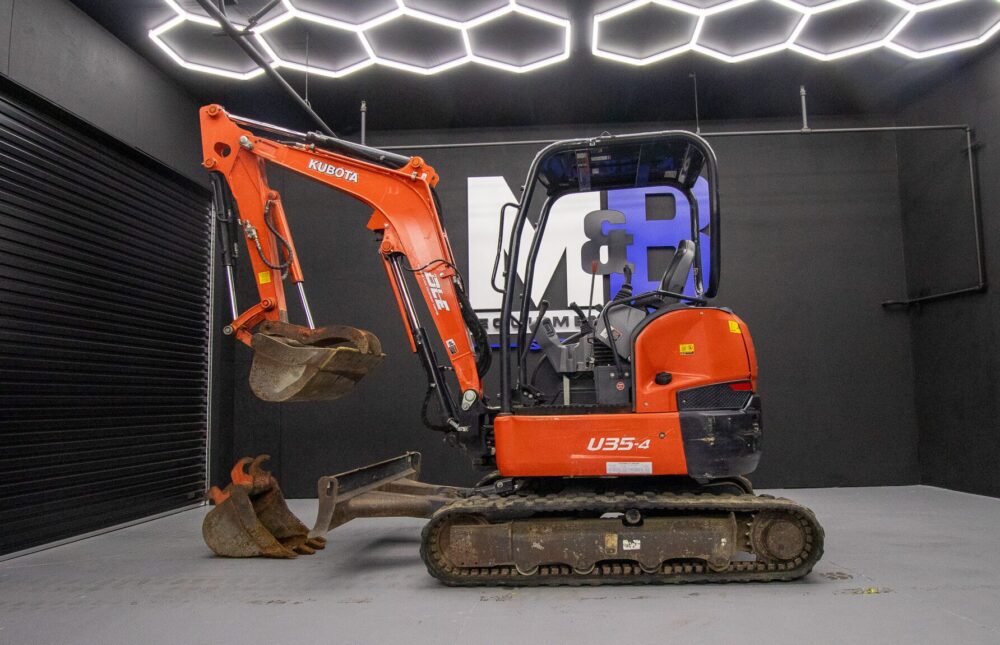

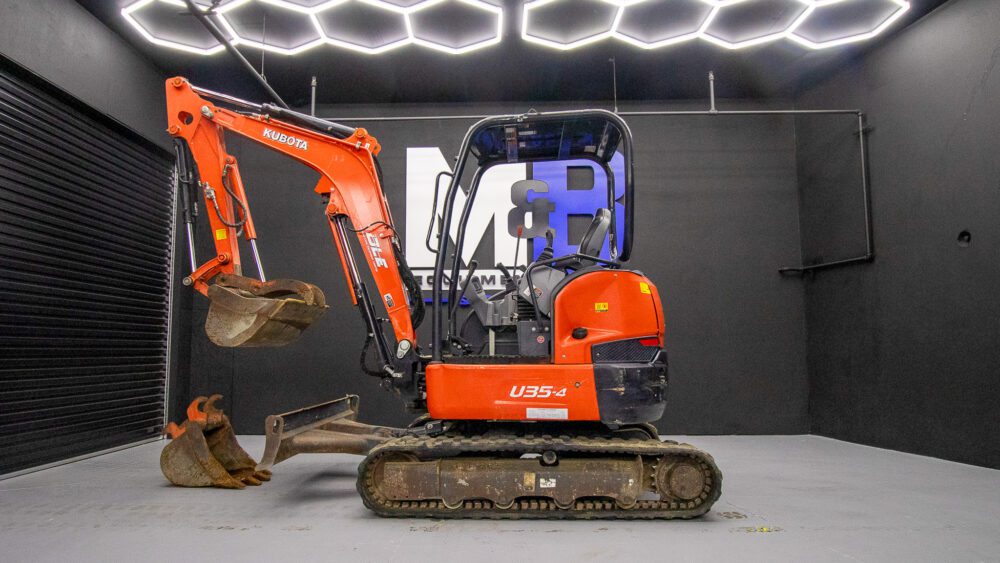

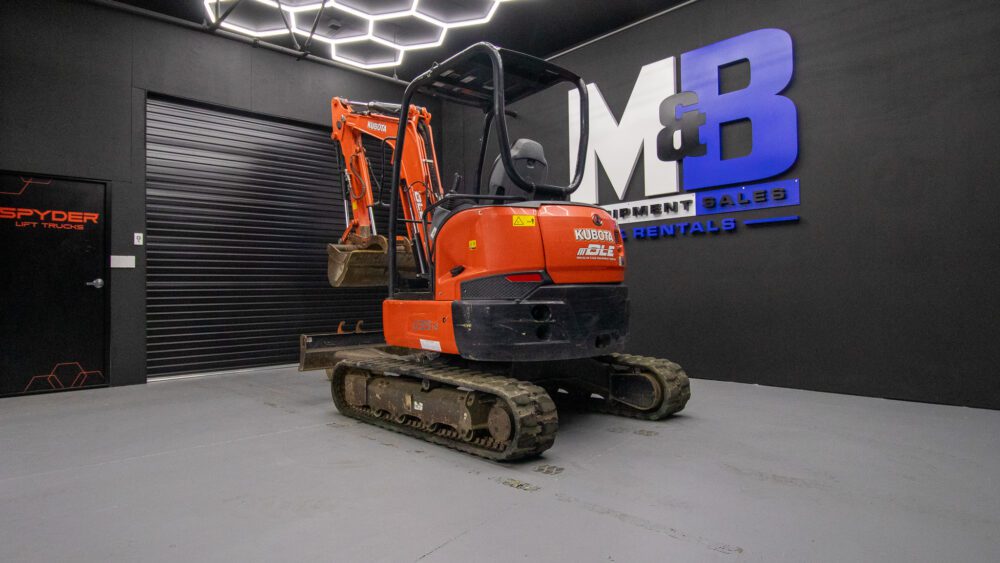

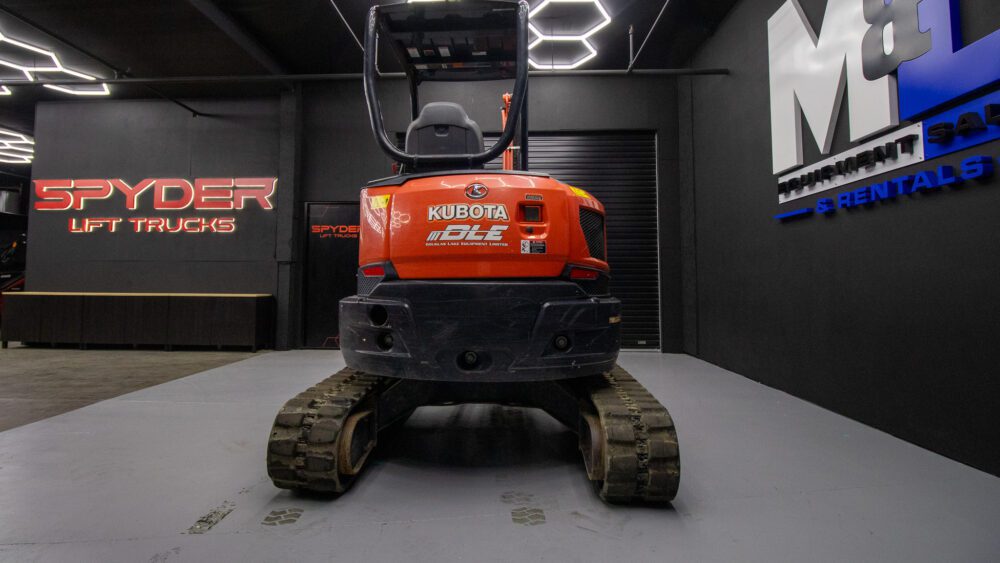

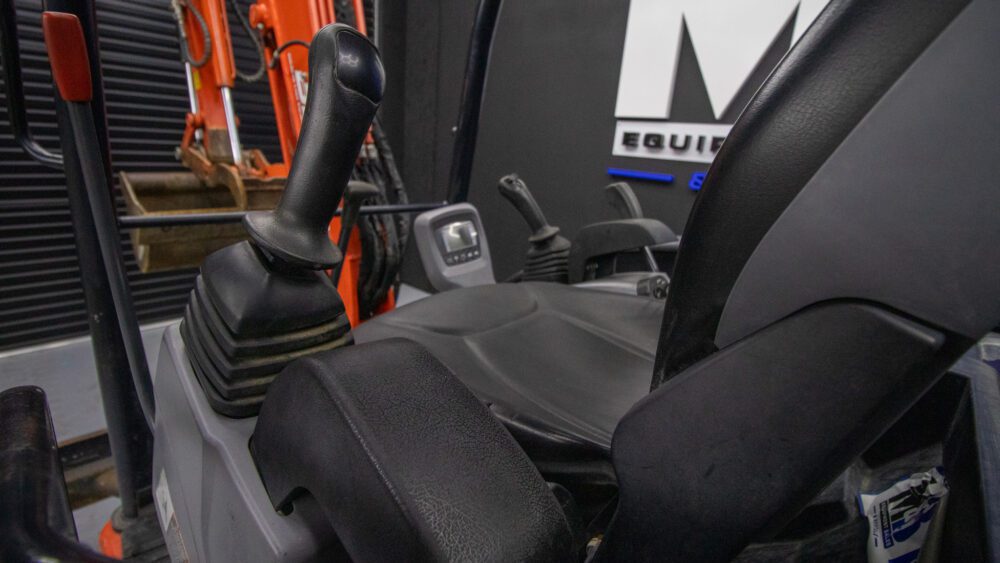

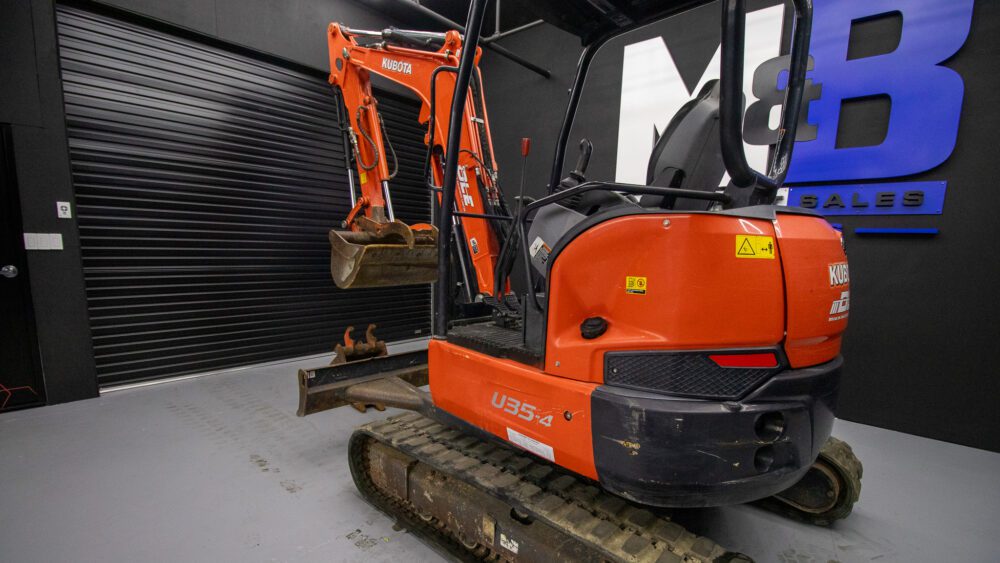

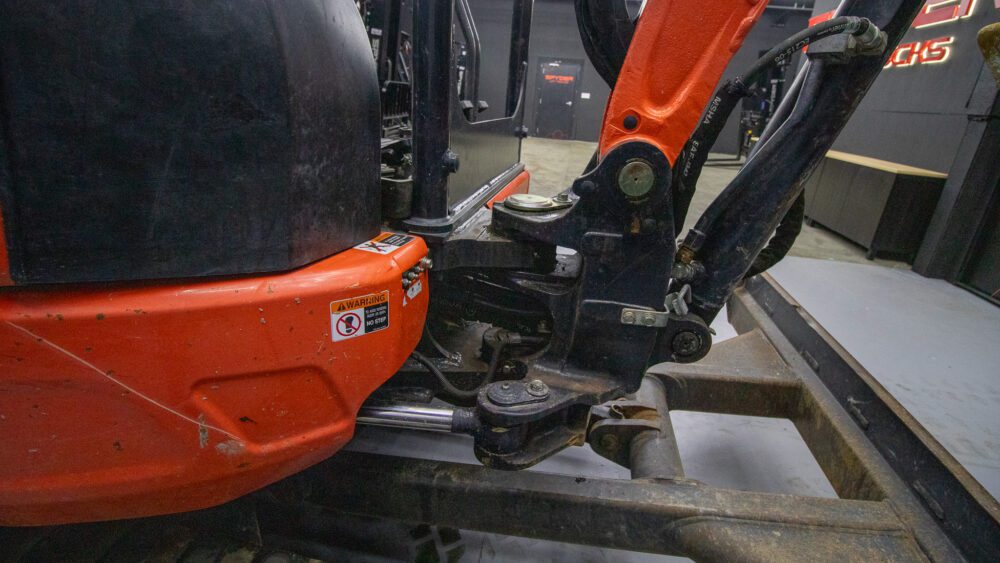

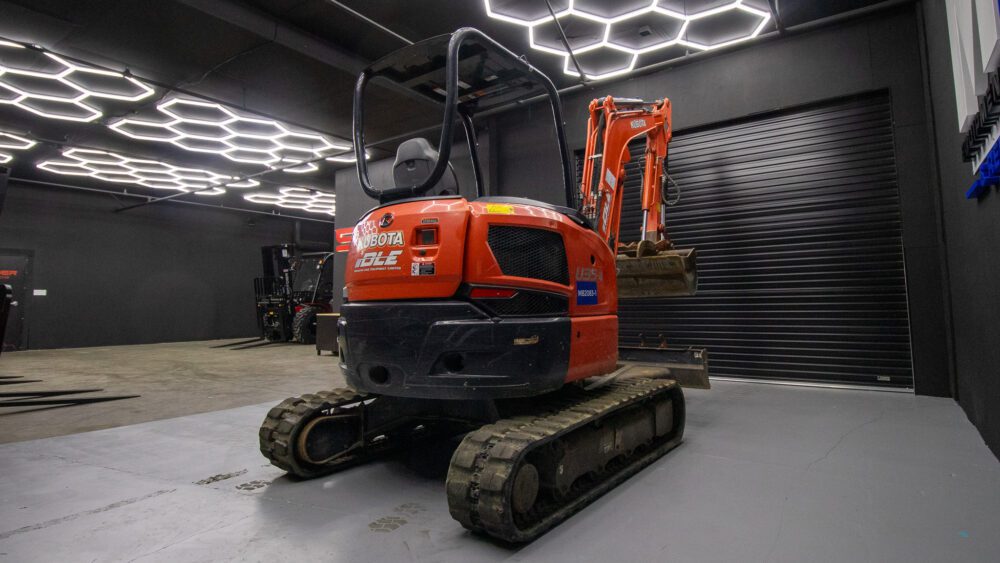

2018 Kubota U35-4 Mini Excavator

Name: 2018 Kubota U35-4 Mini Excavator
SKU: 2179
Availability: InStock

Price: $39,000

Hours: 2,089

Machine in in great condition with low hours!

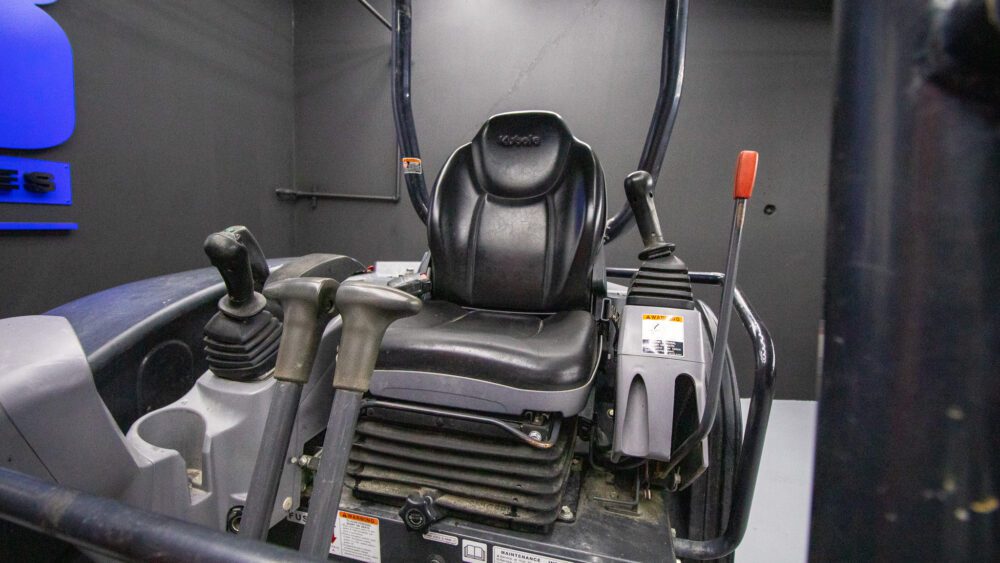

The 2018 Kubota U35-4 is a mid-sized mini excavator designed for contractors who need more reach and lifting capacity without stepping into full-size territory. Smooth hydraulics, strong breakout force, and comfortable operator controls make it a pleasure to run all day. Ideal for trenching, grading, and utility installation.

Key Specs:

Engine: 24.8 hp direct-injection diesel
Operating Weight: ~8,234–8,478 lb
Dig Depth: 10.4 ft
Max Reach: ~16.9 ft
Loading Height: ~11.6 ft
Hydraulic Flow: 20.6 gpm
Fuel Capacity: 10.6 gal

➡ Take on bigger jobs with ease! Contact us now to get pricing, arrange a demo, or secure this machine for your fleet.

2018 Kubota U35-4 Mini Excavator

SKU:

Currently in stock

Purchase Price:

$39,000.00 +taxes & delivery

From $650 / Month (OAC)

Free Pickup in Delta, B.C. or Edmonton, AB

Delivery Quote

Name

First

Last

Phone

Company Name (If Applicable)

Pickup or Delivery Preference:

Delivery Address

Address Line 1

Address Line 2

City

State / Province / Region

Postal Code

Country

Product Type

Notes:

Quantity

604-800-0624

sales@mbequipment.ca

'L X 'W X 'H

Model	Kubota U35 (2018)
Machine Type	Mini Excavator (Zero Tail Swing)
Engine	Kubota D1503‑M (DI diesel)
Engine Displacement	1.647 L
Gross Horsepower (SAE J1995)	24.8 hp @ 2200 rpm
Net Horsepower (SAE J1349)	23.9 hp @ 2200 rpm
Rated RPM	2200 rpm
Operating Weight	8,234–8,478 lb
Fuel Tank Capacity	≈ 10.6–11.1 gal
Overall Length	187.0 in (4,750 mm)
Overall Height (Canopy / Cab)	97.6 in / 97.2 in
Overall Width	66.9 in (1,700 mm)
Min. Ground Clearance	≈ 11.4 in (290 mm)
Crawler Length	2,090 mm
Tumbler Distance	1,670 mm
Track (Shoe) Width	295 mm (~11.6 in)
Max Dig Depth	11.6 ft (139'')
Max Reach at Ground	≈ 16.9 ft (202.6 in)
Dump Height (Approx)	≈ 11.6 ft (139 in)
Bucket Breakout Force	≈ 7924 lb
Arm (Crowd) Force	≈ 4451 lb
Hydraulic Pumps (Main)	39.6 L/min ×2 + 20.9 L/min ×1
Auxiliary Hydraulic Flow (AUX1)	≈ 60 L/min (~15.8 gpm)
Travel Speed (Low / High)	1.86 / 2.86 mph

Description

2018 Kubota U35-4 Mini Excavator

Price: $39,000

Hours: 2,089

Machine in in great condition with low hours!

Key Specs:

Engine: 24.8 hp direct-injection diesel
Operating Weight: ~8,234–8,478 lb
Dig Depth: 10.4 ft
Max Reach: ~16.9 ft
Loading Height: ~11.6 ft
Hydraulic Flow: 20.6 gpm
Fuel Capacity: 10.6 gal

➡ Take on bigger jobs with ease! Contact us now to get pricing, arrange a demo, or secure this machine for your fleet.

M&B FAQ’s

How to place an order?

Select the desired quantity then click the ‘Delivery Quote” button and provide the requested information. Our team will then work through our database of freight carriers to find the most cost- effective delivery solution to your location. You will typically see a quote in your inbox within 1 -2 business days from filling out the form.

Pickup or Delivery?

If you would like to arrange your own pickup, simply select: Pickup up in Delta, B.C or Pickup in Edmonton option on the information form.

How long does shipping take?

Orders will typically ship in 2 -3 days from receiving payment on the order. Transit time ranges depending on your location but typically take 2 -3 days on average.
