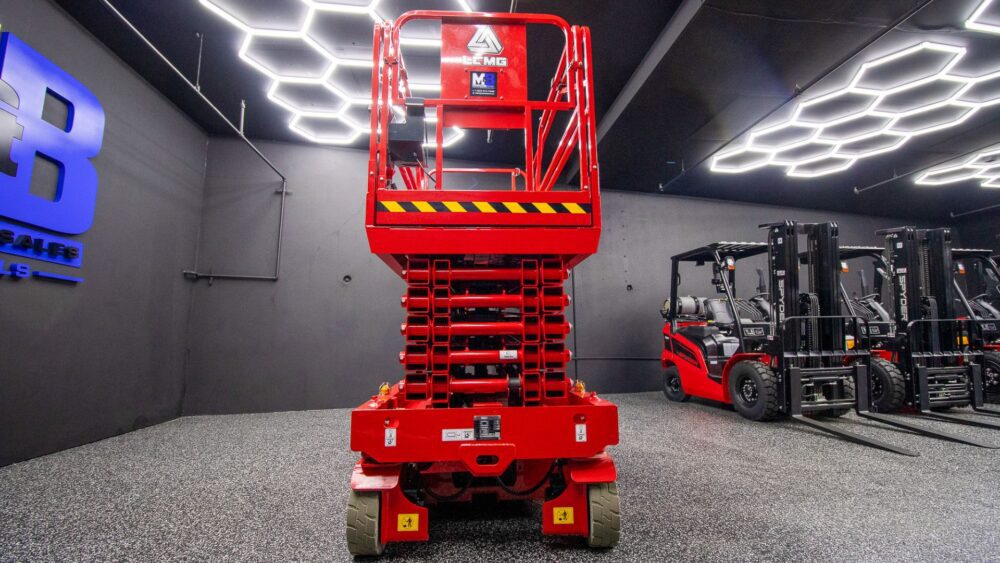

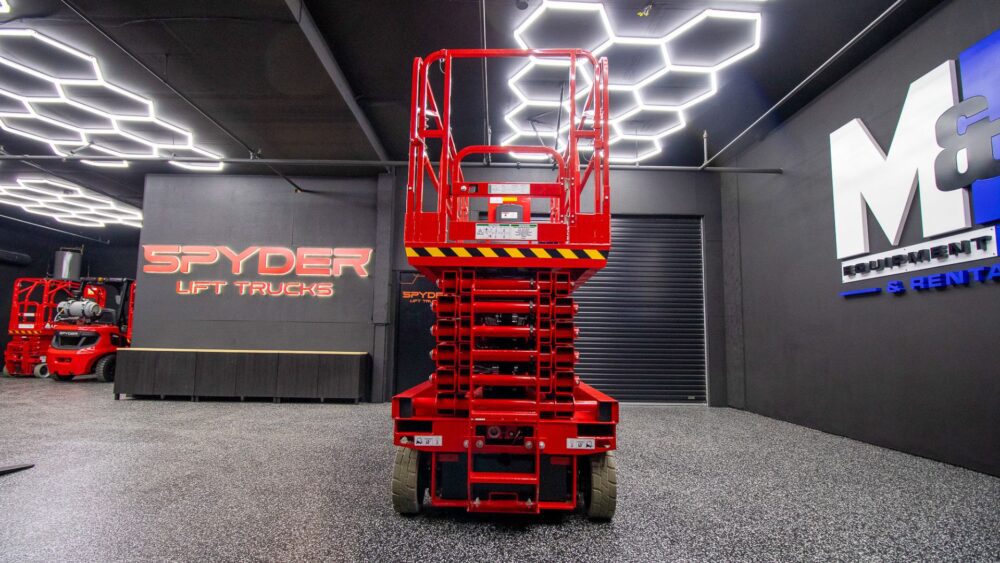

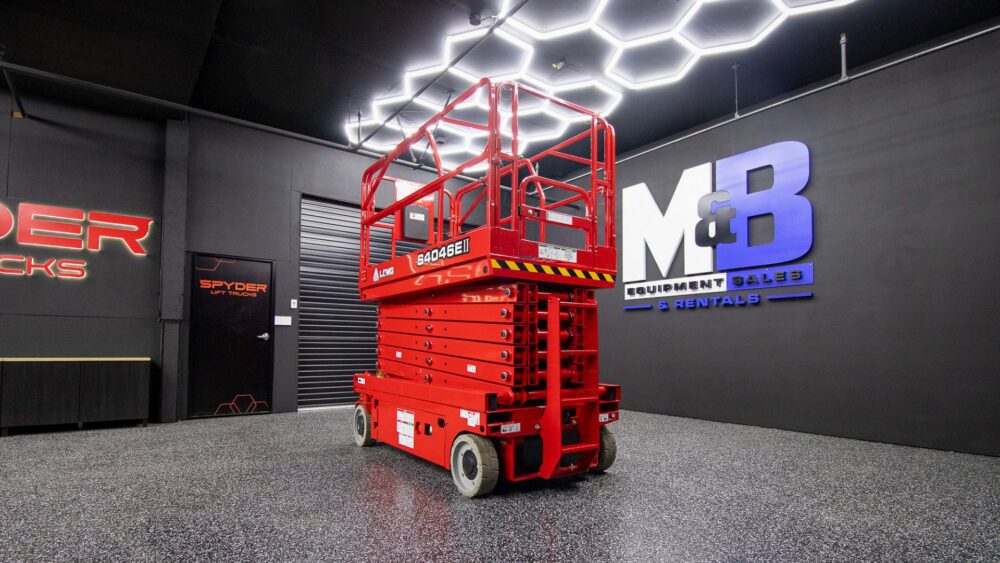

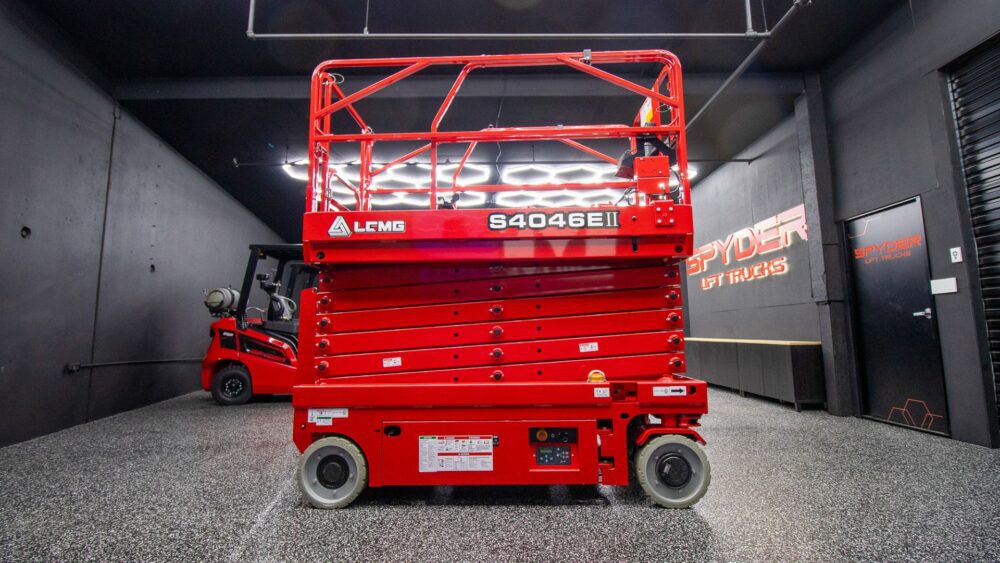

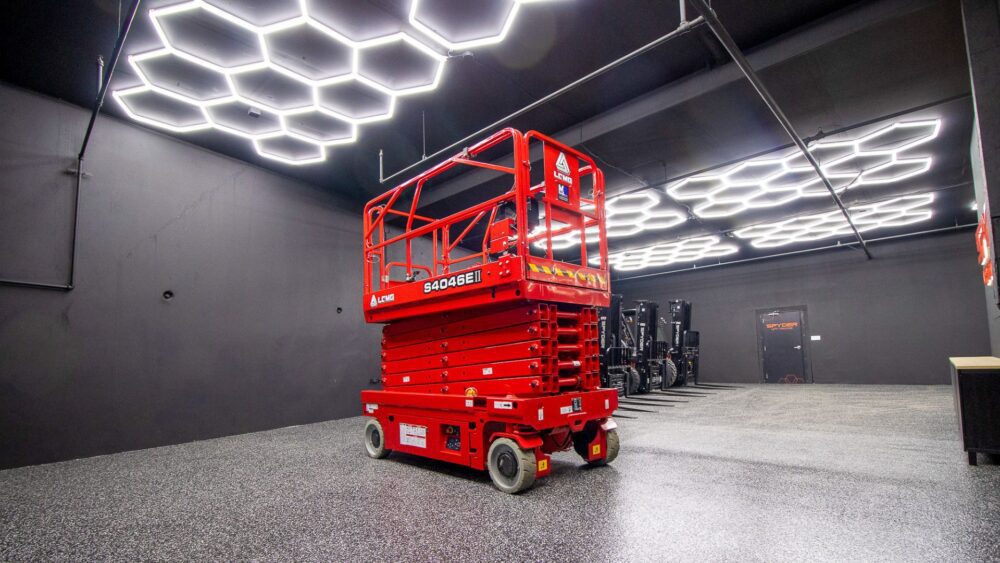

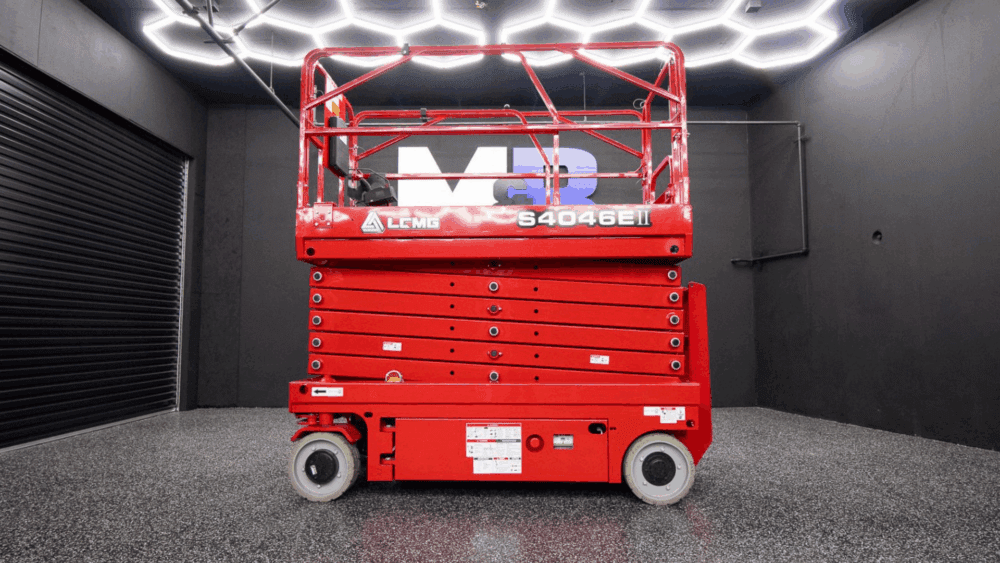

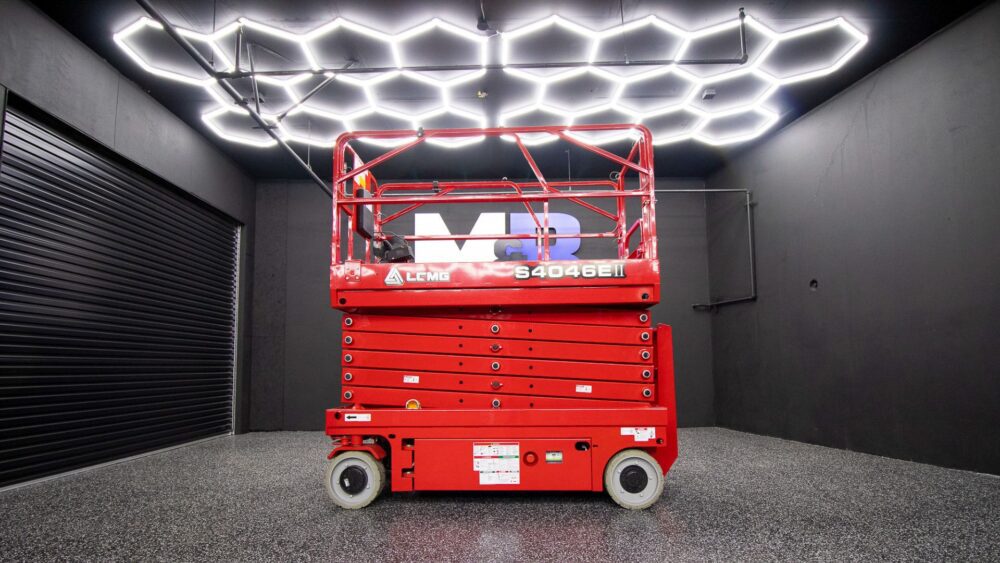

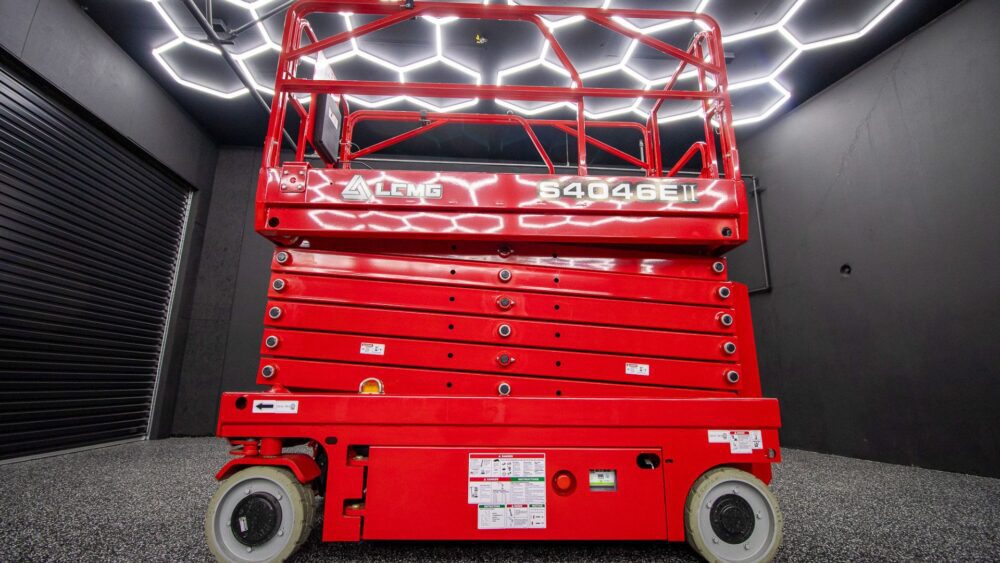

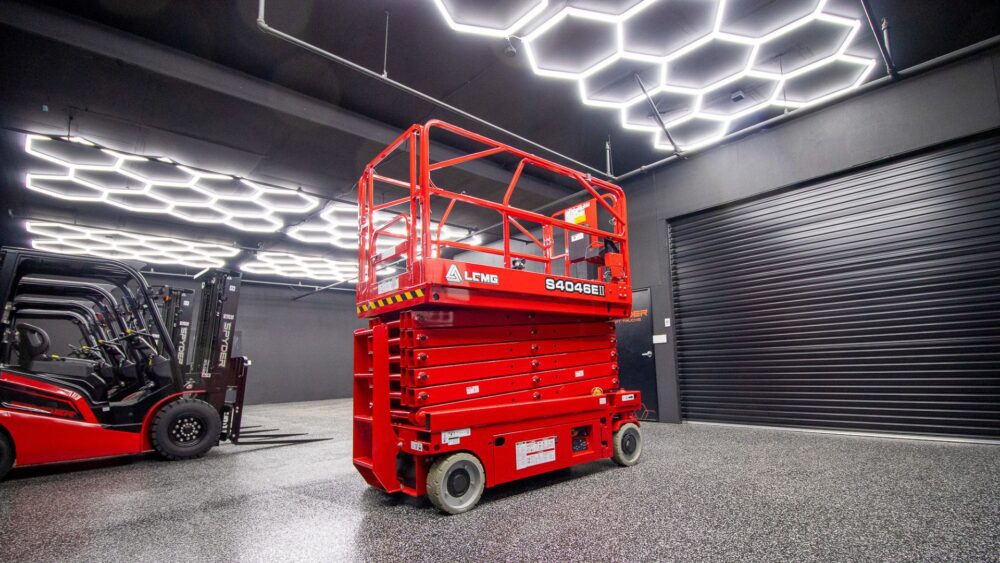

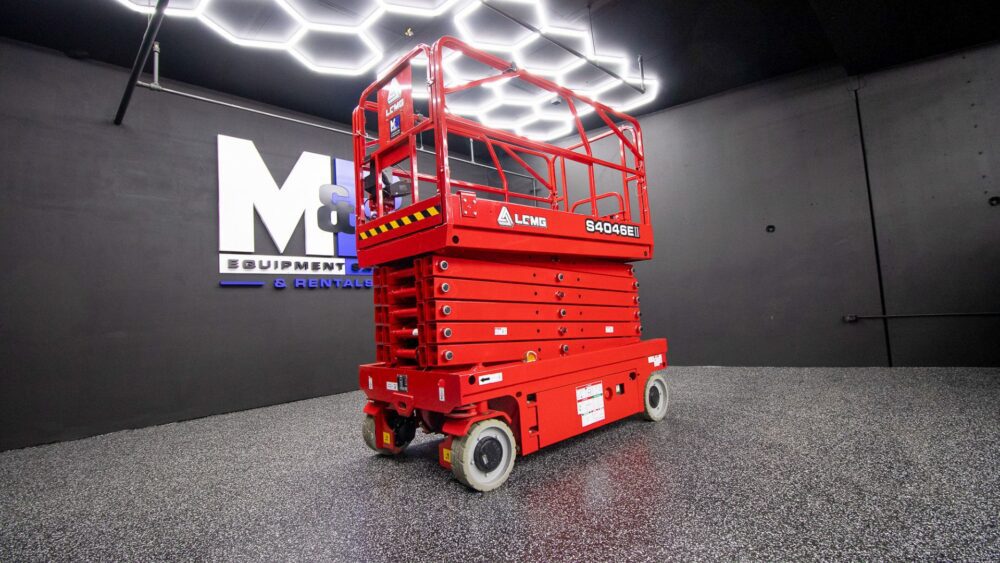

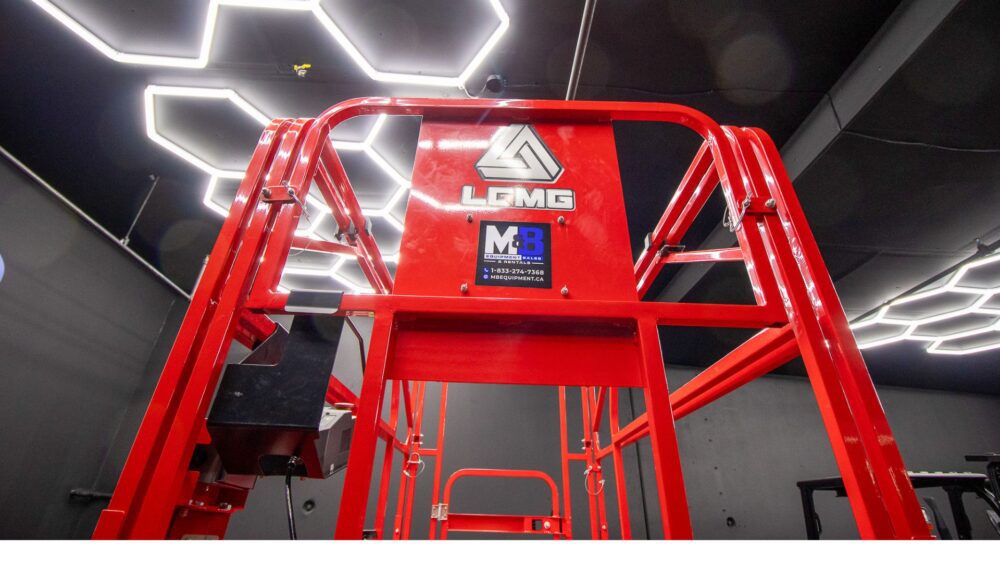

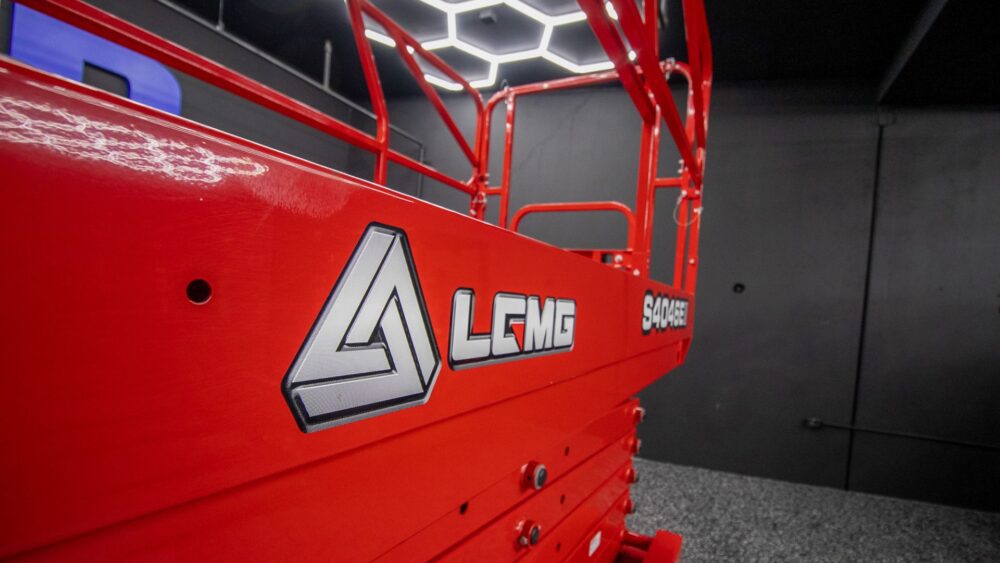

40’ LGMG Scissor Lift
Purchase Price:
$29,800.00 +taxes & delivery
From $496 / Month (OAC)
Free Pickup in Delta, B.C. or Edmonton, AB

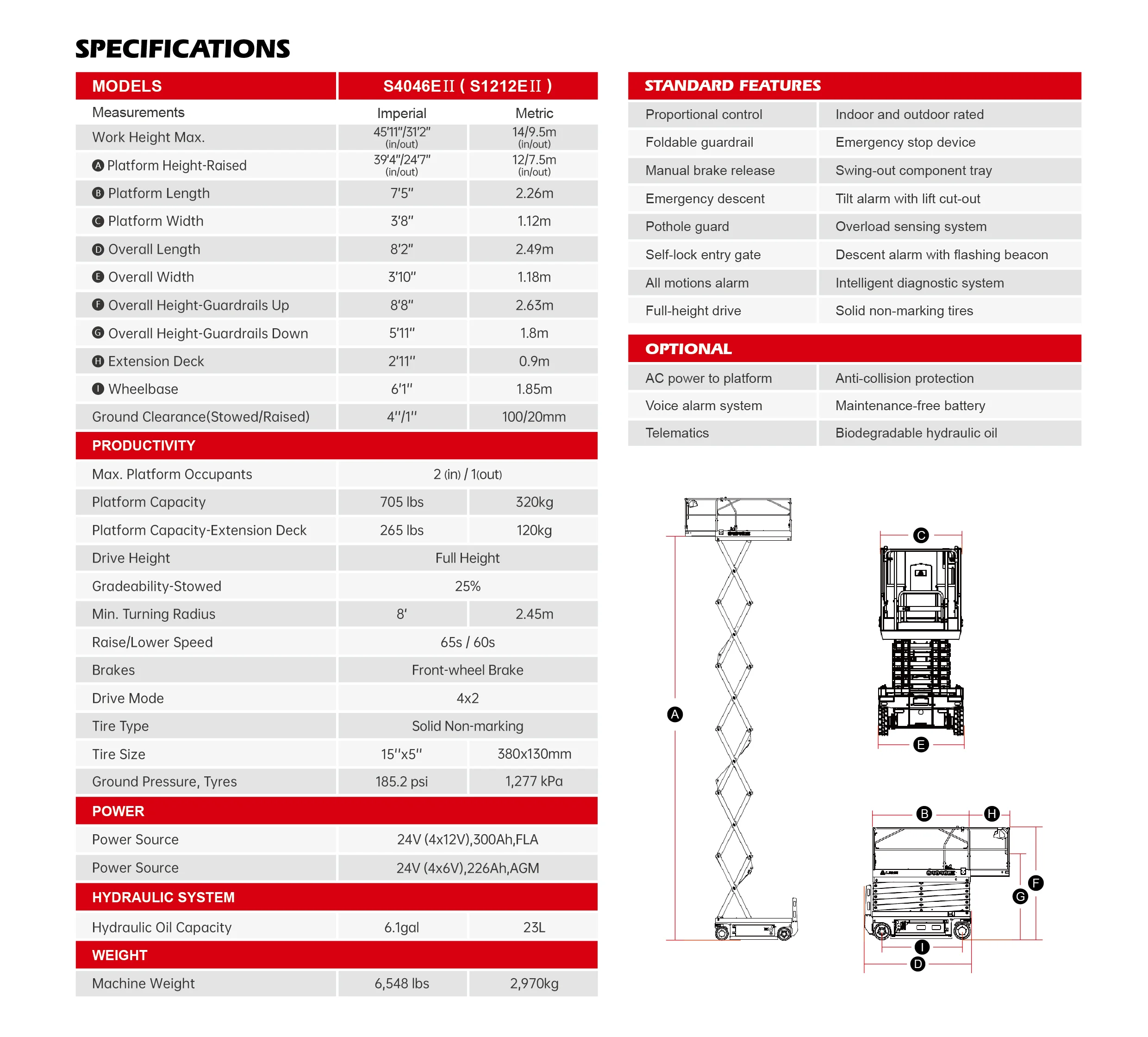

| Model |

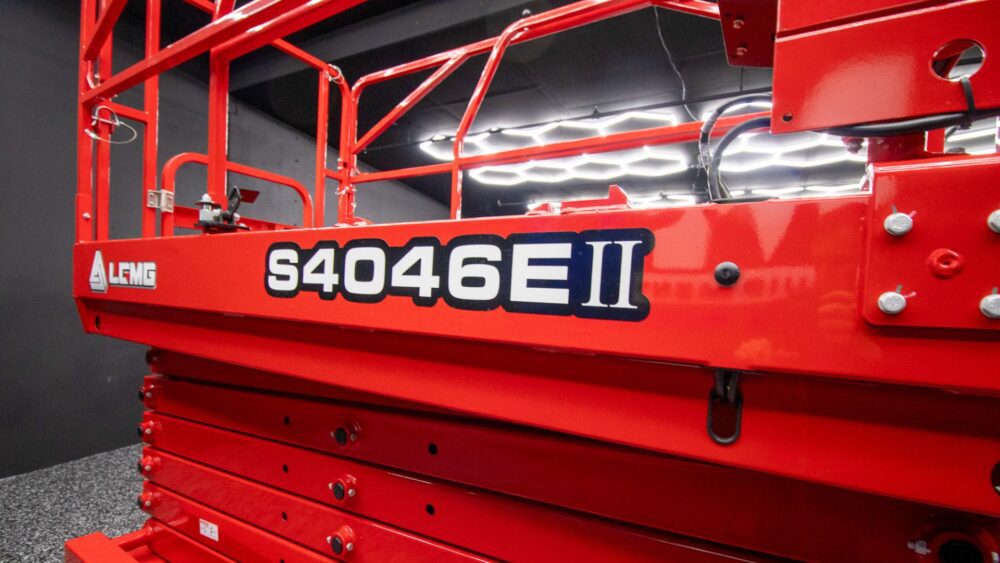

S4046E II |
| Measurements |
Imperial |
| Platform Height-Raised |
39'4" /24'7" |
| Platform Length |
7'5" |
| Platform Width |
3'8" |
| Overall Length |
8'2" |
| Overall Width |
3'10" |
| Overall Height-Guardrails Up |
8'8" |
| Overall Height-Guardrails Down |
5'11" |
| Extension Deck |
2'11" |
| Wheelbase |
6'1" |
| Ground Clearance (Stowed/Raised) |
4''/1" |
| Productivity |
|
| Max. Platform Occupants |
2 (in) / 1 (out) |
| Platform Capacity |
705 lbs |
| Platform Capacity-Extension Deck |
265 lbs |
| Drive Height |
Full Height |
| Gradeability-Stowed |
25% |
| Min. Turning Radius |
8' |
| Raise/Lower Speed |
65s / 60s |
| Brakes |
Front-wheel Brake |
| Drive Mode |
4x2 |
| Tire Type |
Solid Non-marking |
| Tire Size |
15''x5" |
| Ground Pressure, Tyres |
185.2 psi |
| Power |
|
| Power Source |
24V (4x12V), 300Ah, FLA |
| Power Source |
24V (4x6V),226Ah, AGM |
| Hydraulic System |
|
| Hydraulic Oil Capacity |
6.1gal |
| Weight |
|
| Machine Weight |
6,548 lbs |
| Standard Features |
|
| Proportional control |
Indoor and outdoor rated |
| Foldable guardrail |
Emergency stop device |
| Manual brake release |
Swing-out component tray |
| Emergency descent |
Tilt alarm with lift cut-out |
| Pothole guard |
Overload sensing system |
| Self-lock entry gate |
Descent alarm with flashing beacon |
| All motions alarm |
Intelligent diagnostic system |
| Full-height drive |
Solid non-marking tires |
| Optional |
|
| AC power to platform |
Anti-collision protection |
| Voice alarm system |
Maintenance-free battery |
| Telematics |
Biodegradable hydraulic oil |
